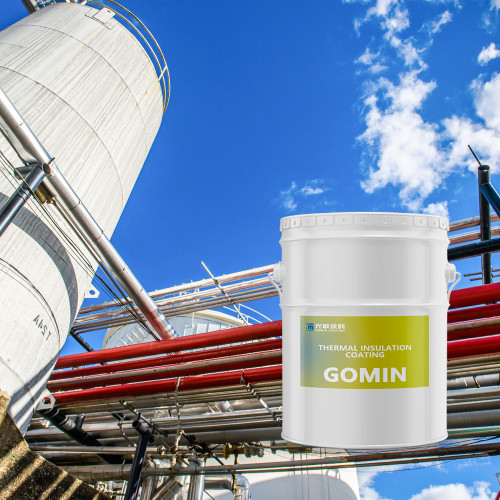

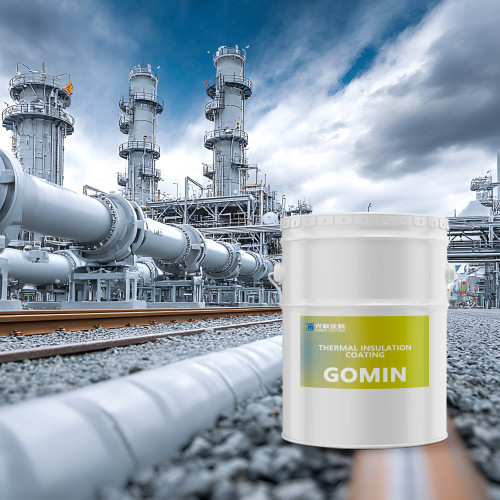

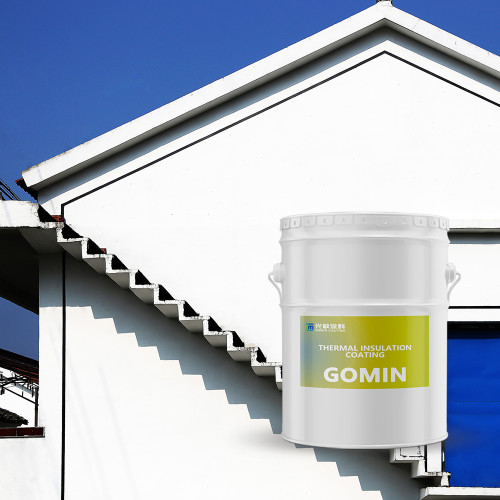

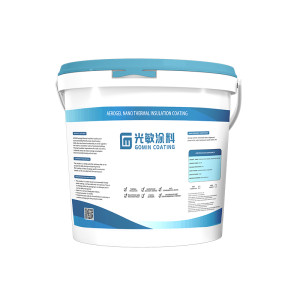

GM-GX Ultimate Barrier Coating Rigid Aerogel for Thermal Insulation Water & Mold Protection Chemical Product
- Model
- GM-GX-1
Item specifics
- Aerogel Coating
- Hydrophobic type
- Density
- 450 g/L
- Sanding Property
- Can be sanded manually
- Coverage
- 0.48 m²/L (2mm thickness)
- Dilution
- Up to 5% water addition based on coating condition
- Recommended Coating Thickness
- Above 2mm, apply at least 2 coats
- Curing Time
- 8-24 hours
- Application Methods
- Rolling, brushing, spraying, troweling
- Operating Temperature
- -45°C to 200°C
- Packaging Specifications
- 20L,125L
Review
Description

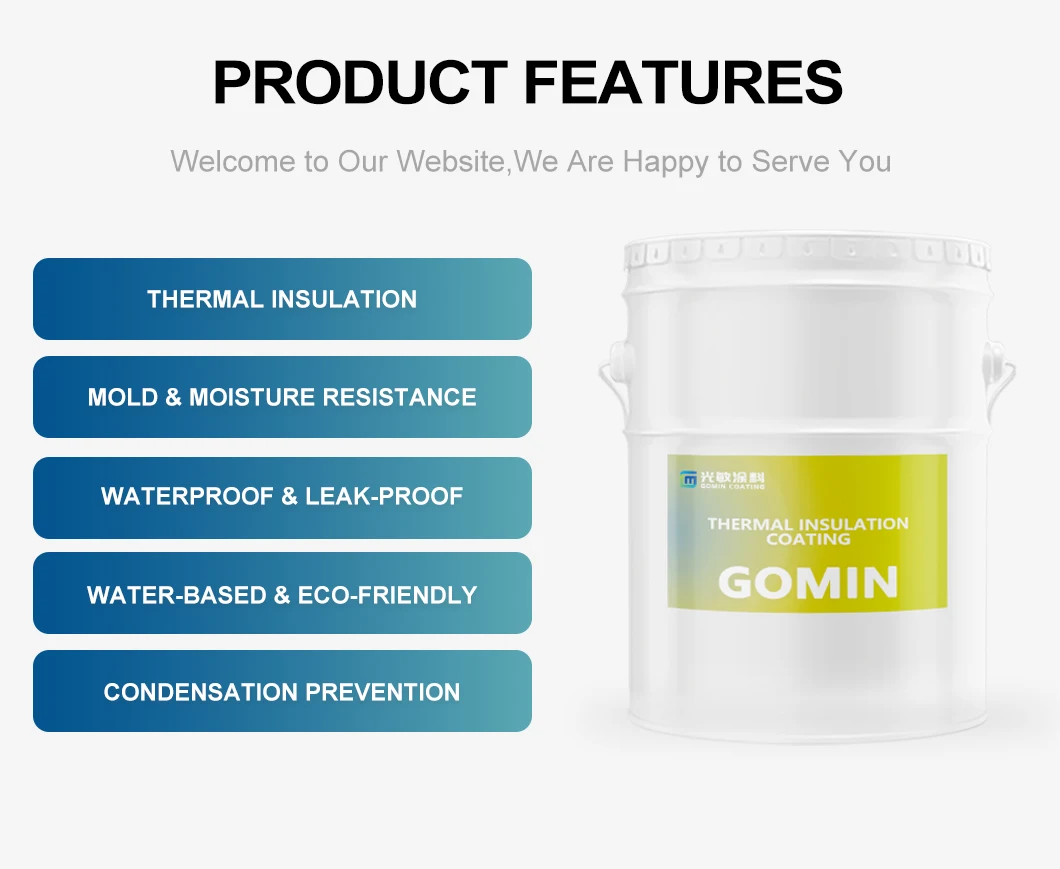

Thermal insulation, mold and moisture resistance, waterproof and leak-proof, water-based and environmentally friendly, condensation prevention, and strong adhesion. GM-GX aerogel rigid coating is a high-performance architectural coating with a variety of excellent properties, widely used in scenarios such as building interior and exterior walls, roofs, and factory buildings. This coating possesses exceptional thermal insulation performance, effectively reducing heat transfer and minimizing indoor-outdoor temperature differences, thereby keeping interiors cool in summer and aiding in heat retention during winter, reducing energy consumption. The aerogel rigid coating has mold and moisture resistance properties, effectively preventing mold growth on walls due to damp environments, maintaining clean and aesthetically pleasing surfaces. Additionally, the coating offers excellent waterproof and leak-proof functionality, effectively preventing water penetration and avoiding damage caused by water seepage.
The aerogel rigid coating adopts a water-based and environmentally friendly formula, non-toxic and harmless, meeting modern environmental requirements. It does not release harmful gases during application, making it safe for humans and the environment. At the same time, the coating has condensation prevention properties, effectively preventing condensation on wall surfaces due to temperature differences, avoiding dampness and mold. The coating exhibits extremely strong adhesion, firmly adhering to various substrate surfaces, resistant to peeling, ensuring long-term stability and durability.

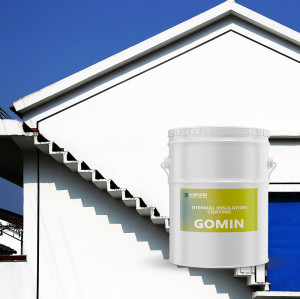

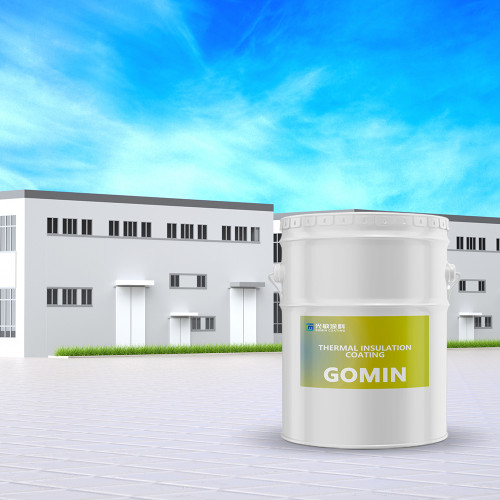

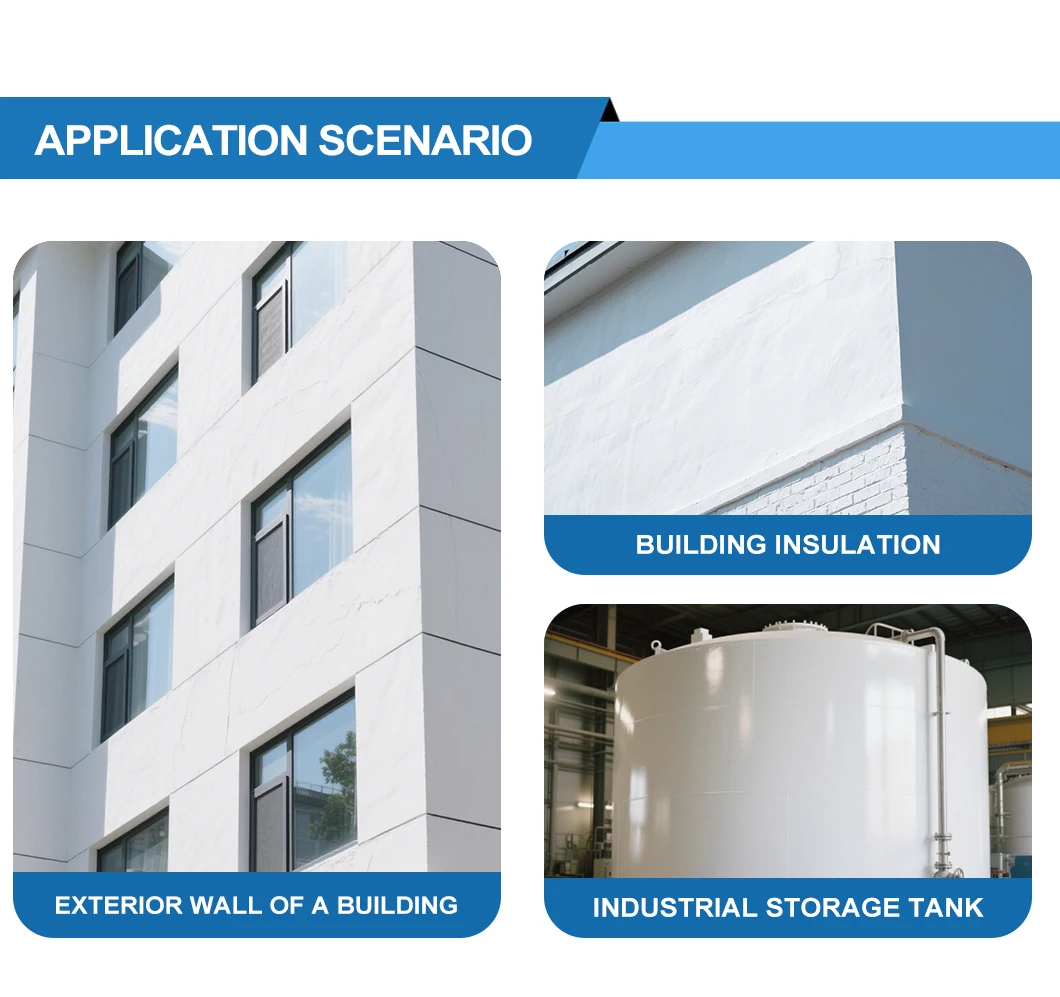

Applied to building interior and exterior walls, roofs, and factory buildings, etc.
Test Item | Unit | Test Requirement | Test Result | Judgment |
|---|---|---|---|---|

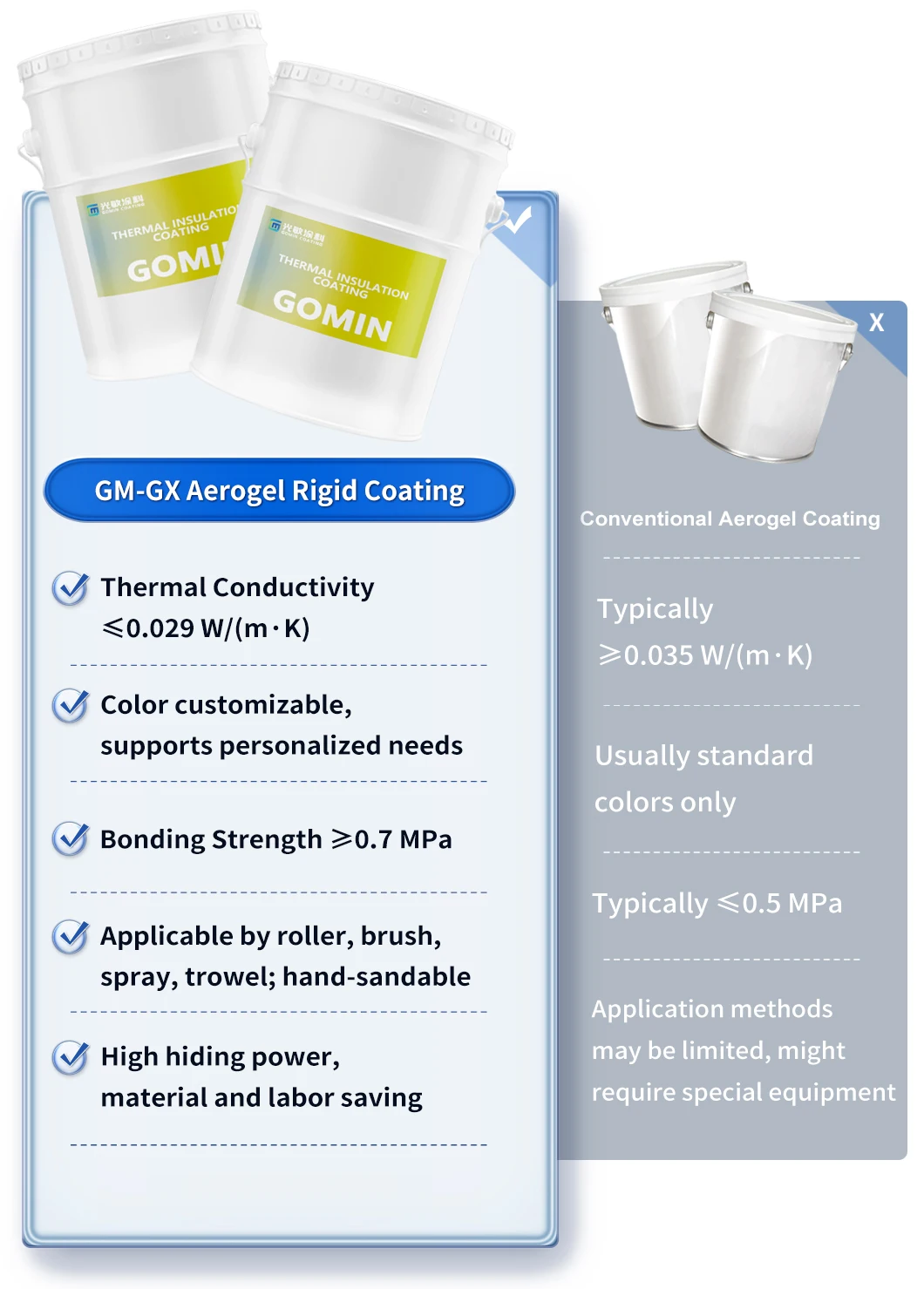

Thermal Conductivity | W/(m·K) | ≤0.065 | 0.029 | Pass |
Thermal Resistance | (m²·K)/W | ≥0.3 | 0.45 | Pass |
Condition in Container | / | No hard lumps after stirring, uniform state | No hard lumps after stirring, uniform state | Pass |
Alkali Resistance (48h) | / | No abnormalities | No abnormalities | Pass |
Water Resistance (48h) | / | No abnormalities | No abnormalities | Pass |
Low-Temperature Storage Stability | / | No deterioration after three cycles | No deterioration after three cycles | Pass |
Water Absorption | g/10min | ≤2.0 | 1.9 | Pass |
Film Flexibility (50mm diameter) | / | No cracks | No cracks | Pass |
Bond Strength (under standard conditions) | MPa | ≥0.6 | 0.7 | Pass |
Initial Drying Crack Resistance (6h) | / | For products with single-layer application thickness ≤1.5mm, 1mm without cracks | 1mm without cracks | Pass |
VOC Content | g/L | ≤100 | 0.5 | Pass |
Formaldehyde Content | mg/kg | ≤50 | Not detected | Pass |
Total Content of Aromatic Hydrocarbons [benzene, toluene, xylene (including ethylbenzene)] | mg/kg | ≤100 | Not detected | Pass |
Total Content of Alkylphenol Ethoxylates | mg/kg | ≤1000 | Not detected | Pass |
Heavy Metal Content (%) | GB/T 26125-2011 (Detection limit: 0.001%) | Lead (Pb) | Not detected | Pass |
|
| Cadmium (Cd) | Not detected | Pass |
|
| Mercury (Hg) | Not detected | Pass |
|
| Hexavalent Chromium (Cr VI) | Not detected | Pass |

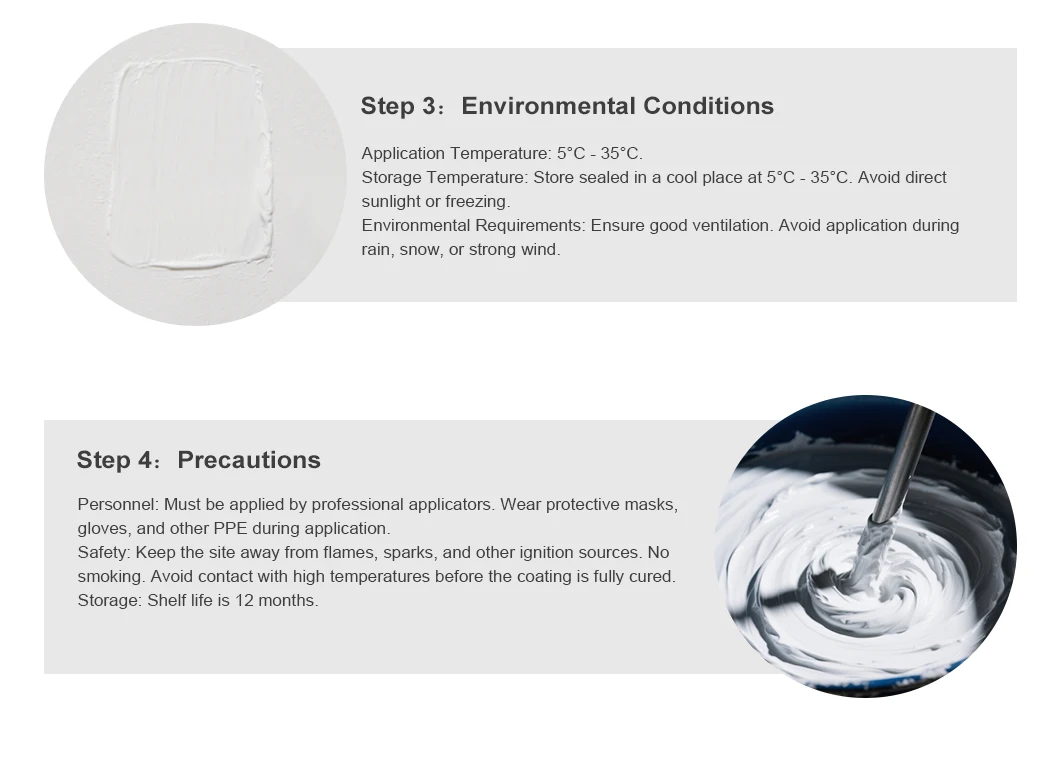

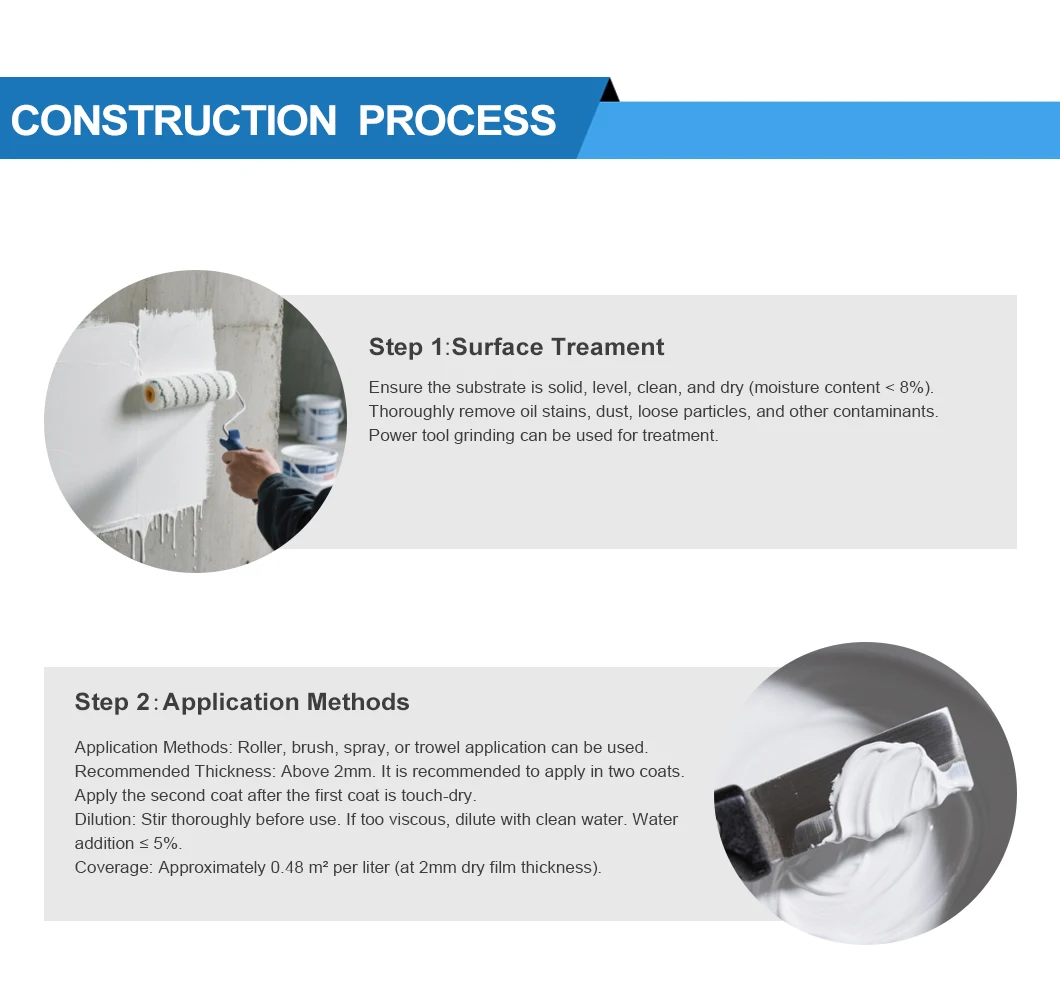

(1) This product is intended to be applied only by professional construction personnel in industrial fields in accordance with the product manual, material safety data sheet, and recommendations provided on the packaging container.
(2) The construction site should be kept away from sparks, open flames, and other ignition sources. Smoking is strictly prohibited.
(3) When performing spraying operations, protective masks, gloves, and other protective equipment must be worn to avoid skin contact or inhalation of dust.
(4) Before use, the coating must be thoroughly stirred to avoid sedimentation or layering. If the coating is too thick after stirring, an appropriate amount of clean water can be added for dilution, but the amount of water added should not exceed 5% of the total coating volume.
(5) Application can be carried out using rollers, brushes, or spraying equipment. During application, ensure even coverage without missed spots. It is recommended to apply in two coats, allowing the first coat to dry before applying the second, to ensure coating thickness and uniformity.
(6) The construction site should be well-ventilated to avoid prolonged exposure to high concentrations of coating materials.
